- Complies with ATX12 v2.4 & EPS12 v2.92
- Efficiency ≧ 88% @ typical Load
- Active PFC ≧ 0.9
- Hold up time > 17ms
- Full modular design with all black round cables
- +12V single-rail design
- Dc – Dc module design
- Wide input voltage 140-265V
- Semi-fanless design with 135mm FDB fan
- Use solid capacitor in secondary
- Complete protextions: OVP, SCP, OPP
Innovative Semi-fanless with 135mm FDB Fan
80 Plus® 230V EU Bronze Certification
HYDRO MX series, 80 PLUS® 230V EU bronze certified, saves energy through its high efficiency up to 85% and excesses the standard through its high efficiency up to 88%.
DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, HYDRO MX Series ensure you the outstanding conversion efficiency and offers reliability and stability.
Solid capacitor in secondary
Solid capacitor have better quality, protecting your equipment from the capacitor leakage problem and also increasing the life-span of your system.

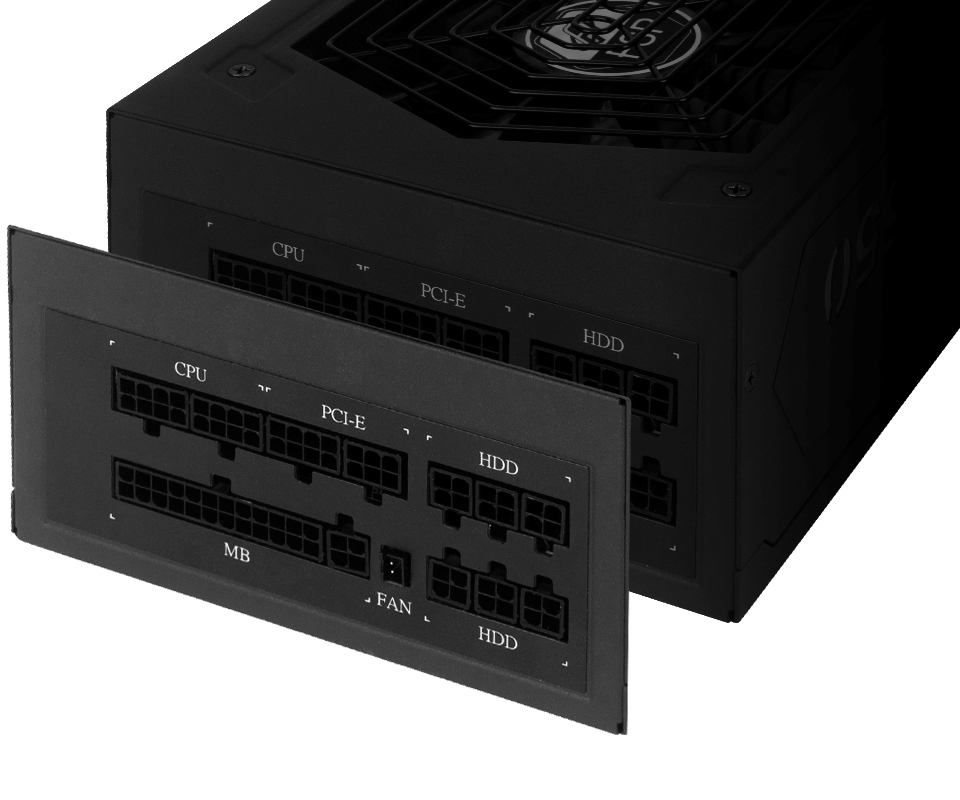

Fully Modular Design with All Black Round Cables
The detachable black round cables make your builds and upgrades easy, with clean, neat results. You can attach the cables you need lets you save valuable internal space and can improve system airflow.
Wide Input Range Power Supply
Wide input voltage 140-265V, can ensure the stability of the system when the input voltage is not stable.
|Rated Output Power||650W|
|80 PLUS Certification||230V EU Bronze|
|PFC||Active PFC > 0.9|
|Efficiency||88% @ typical load|
|Fan Type||135 X 135 mm FDB Bearing|
|Dimensions(L x W x H)||150 X 170 X 86 mm|
|Operation Temp.||200,000 Hrs|
