• Unique Feature
  ASRock Super Alloy
  – Premium Power Choke
  – Sapphire Black PCB
  – High Density Glass Fabric PCB
  – 2oz Copper PCB
  ASRock Ultra M.2 (PCIe Gen3 x4)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  – Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge and Raven Ridge)
  – Digi Power design
  – 9 Power Phase design
  – Supports 95W Air Cooling
• Chipset
  – AMD Promontory B350
• Memory
  – Dual Channel DDR4 Memory Technology
  – 4 x DDR4 DIMM Slots
  – AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  – AMD 7^th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory*
  – Max. capacity of system memory: 64GB**
  – 15μ Gold Contact in DIMM Slots

  *Please refer to Memory Support List on ASRock’s website for more information.
  Please refer to below table for DDR4 UDIMM maximum frequency support.
  A-Series APUs:

  UDIMM Memory Slot				Frequency(MHZ)
  A1	A2	B1	B2
  –	SR	–	–	2400
  –	DR	–	–	2400
  –	SR	–	SR	2400
  –	DR	–	DR	2133
  SR	SR	SR	SR	1866
  SR/DR	DR	SR/DR	DR	1866

  Ryzen Series CPUs:

  UDIMM Memory Slot				Frequency(MHZ)
  A1	A2	B1	B2
  –	SR	–	–	2667
  –	DR	–	–	2667
  –	SR	–	SR	2667
  –	DR	–	DR	2400-2667
  SR	SR	SR	SR	2133-2400
  SR/DR	DR	SR/DR	DR	1866-2133

  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^®32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  – Supports “Plug and Play”
  – ACPI 5.1 compliance wake up events
  – Supports jumperfree
  – SMBIOS 2.3 support
  – DRAM Voltage multi-adjustment
• Graphics
  – Integrated AMD Radeon™ R-Series Graphics in A-series APU*
  – DirectX 12, Pixel Shader 5.0
  – Max. shared memory 2GB
  – Three graphics output options: D-Sub, DVI-D and HDMI
  – Supports Triple Monitor
  – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
  – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
  – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  – Supports HDCP with DVI-D and HDMI Ports
  – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

  *Actual support may vary by CPU
• Audio
  – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
  – Premium Blu-ray Audio support
  – Supports Surge Protection

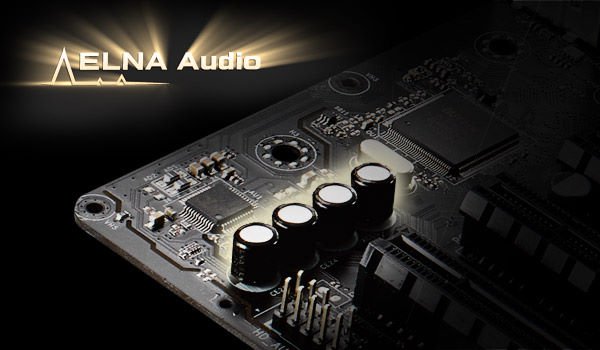

  – ELNA Audio Caps

  *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  – Realtek RTL8111GR
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection
  – Supports LAN Cable Detection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Slots
  AMD Ryzen series CPUs
  – 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))*
  AMD 7^th A-Series APUs
  – 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8 (PCIE2) / x2 (PCIE4))*

  – 4 x PCI Express 2.0 x1 Slots
  – Supports AMD Quad CrossFireX™ and CrossFireX™**

  *Supports NVMe SSD as boot disks
  If M2_1 is occupied, PCIE4 will be disabled.

  ** This feature is only supported with Ryzen Series CPUs (Summit Ridge and Raven Ridge).

• Storage
  – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
  – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
  – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)**
  – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module**

  *M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.

  **If M2_1 is occupied, PCIE4 will be disabled.
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit

• Connector
  – 1 x COM Port Header
  – 1 x TPM Header
  – 1 x Power LED and Speaker Header
  – 1 x RGB LED Header*
  – 1 x AMD Fan LED Header*
  – 1 x CPU Fan Connector (4-pin)**
  – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

  *Supports in total up to 12V/3A, 36W LED Strip
  The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

  **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  ***CHA_FAN2 and CHA_FAN3 can auto detect if 3-pin or 4-pin fan is in use.

• Rear Panel I/O
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x D-Sub Port
  – 1 x DVI-D Port
  – 1 x HDMI Port
  – 2 x USB 2.0 Ports (Supports ESD Protection)
  – 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
  – 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock A-Tuning
  – ASRock RGB LED
  – ASRock APP Charger
  – ASRock XFast LAN
  UEFI
  – ASRock Full HD UEFI
  – ASRock Instant Flash
  – ASRock Internet Flash
  – ASRock Easy RAID Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  – Quick Installation Guide, Support CD, I/O Shield
  – 2 x SATA Data Cables
  – 2 x Screws for M.2 Sockets
• Hardware Monitor
  – CPU/Chassis temperature sensing
  – CPU/Chassis Fan Tachometer
  – CPU/Chassis Quiet Fan
  – CPU/Chassis Fan multi-speed control
  – Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor
  – ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
  – Solid Capacitor design
• OS
  – Microsoft^® Windows^® 10 64-bit
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
