• Unique Feature
  ASRock Super Alloy
  – Sapphire Black PCB
  – High Density Glass Fabric PCB
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  – Supports 8^th Generation Intel^® Core™ Processors (Socket 1151)
  – Supports CPU up to 95W
  – 4 Power Phase design
  – Supports Intel^® Turbo Boost 2.0 Technology
• Chipset
  – Intel^® H310
• Memory
  – Dual Channel DDR4 Memory Technology
  – 2 x DDR4 DIMM Slots
  – Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
  – Max. capacity of system memory: 32GB*
  – Supports Intel^® Extreme Memory Profile (XMP) 2.0
  – 15μ Gold Contact in DIMM Slots

  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  – ACPI 6.0 Compliant wake up events
  – SMBIOS 2.7 Support
  – DRAM, PCH 1.05V Voltage Multi-adjustment
• Graphics
  – Supports Intel^® UHD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® UHD Graphics
  – DirectX 12
  – HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
  – Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
  – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
  – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  – Supports HDCP with DVI-D Port

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
  – Supports Surge Protection

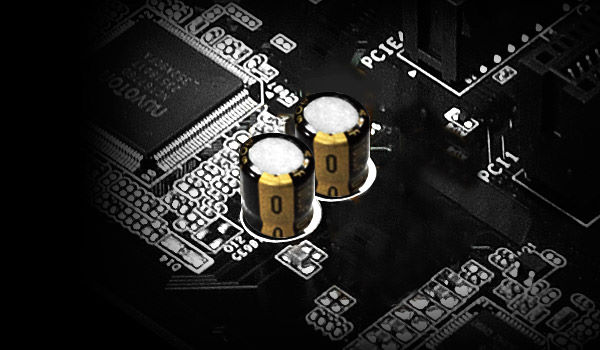

  – ELNA Audio Caps

  *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  – 1 x Realtek RTL8111H
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Slots
  – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
  – 1 x PCI Express 2.0 x1 Slot

  *Supports NVMe SSD as boot disks
• Storage
  – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• Connector
  – 1 x TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

• Rear Panel I/O
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x D-Sub Port
  – 1 x DVI-D Port
  – 4 x USB 2.0 Ports (Supports ESD Protection)
  – 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock A-Tuning
  – ASRock XFast LAN
  UEFI
  – ASRock EZ Mode
  – ASRock Full HD UEFI
  – ASRock My Favorites in UEFI
  – ASRock Instant Flash
  – ASRock Internet Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  – Quick Installation Guide, Support CD, I/O Shield
  – 2 x SATA Data Cables
• Hardware Monitor
  – Temperature Sensing: CPU, Chassis/Water Pump Fans
  – Fan Tachometer: CPU, Chassis/Water Pump Fans
  – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  – CASE OPEN detection
  – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor
  – Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
  – Solid Capacitor design
• OS
  – Microsoft^® Windows^® 10 64-bit
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
