So what are Vapor Chamber and 3DVC cooling technologies? To put it simply, we’ve tossed out the traditional copper base that transfers heat away from the CPU and replaced it with a coolant filled VC. When these VCs are heated, the coolant transforms from liquid to gas and back again to protect your CPU from overheating. How? That’s need to know info you’ll need to head back to school (or the CM university) to comprehend.

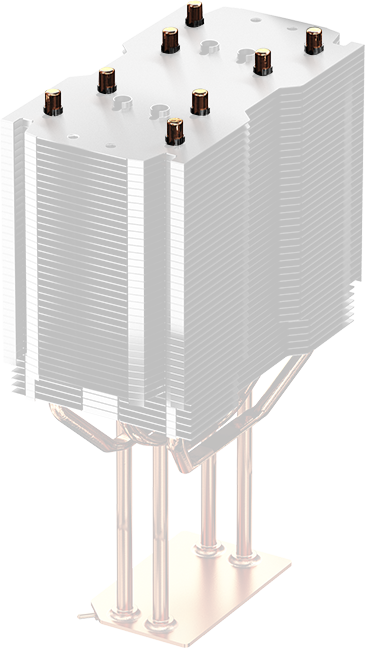

All you need to know is that the process swiftly cools your hardware, and that in 3DVC™, heatpipes and the horizontal base are seamlessly connected, helping to increase performance compared to conventional copper base air coolers.
We know the community also has some awesome ideas, and the ability to express them in everything you make or do. So with that in mind, we’re set to release the 3D printing schematics of the top.
Want to 3D print a creative design or image on the top cover? Go for it. Or what about creating a LED light fixture or 3D model that protrudes out of the air cooler like alien?? Well if you can design it and actually fit it onto the cooler, then why not? 3D print to your heart’s content and make the MasterAir Maker 8truly yours.
|Product Name||MasterAir Maker 8|
|CPU Socket||Intel® LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 socket|
AMD® AM4* / AM3+ / AM3 / AM2+ / FM2+ / FM2 / FM1 socket
|Dimensions (LxWxH)||135 x 145 x 172 mm|
|Heat Sink Dimensions (LxWxH)||78 x 144.5 x 160.5 mm|
|Heat Sink Material||3DVCTM / 8 Heat Pipes / Aluminum Fins|
|Heat Sink Weight||758g|
|Heat Pipe Dimensions||Ø6 mm|
|Fan Dimensions||Ø 140 x 25 mm x 2pcs|
|Fan Speed||600 – 1,800 RPM ± 10%|
|Fan Air Flow||19.8 – 66 CFM ± 10%|
|Fan Air Pressure||0.24 – 2.2 mmH2O|
|Fan Life Expectancy||160,000 hrs|
|Noise Level||8~24 dBA|
|Bearing Type||Loop Dynamic Bearing|
|Rated Voltage||12 VDC|
|Rated Current||0.15 A|
|Power Consumption||1.8 W|
|Fan Weight||130 g|
|EAN / UPC Code||4719512049198 / 884102027413|
|Note||*AMD AM4 upgrade kit needed, please visit: AMD AM4 Ryzen Compatibility|
